Cranes
/ Home Products Cranes Pedestal Mounted Cranes

/ Pedestal Mounted Cranes

Huisman delivers a wide range of Pedestal Mounted Cranes which can be used for various tasks including unloading of supply vessels, offshore installation work, pipe transfer, deck handling and subsea installation. Huisman’s Pedestal Mounted Cranes are characterised by their small tail swing (optimising free deck space), and the fact that all drivers are installed inside the enclosed crane house.



The Huisman Pedestal Mounted Crane (PMC) comprises a steel crane house, bolted to the pedestal via the slew bearing, a lattice or box girder type boom and various hoist tackles to control the boom and the lower blocks. All main equipment - winches, electrical cabinets and/or hydraulic power units - is located inside the crane house to protect it from the harsh marine environment, to increase reliability and to reduce required maintenance. The boom hoist runs from the top of the crane house to the boom tip and controls the radius of the lower blocks.

Quick links
photos technical specifications references

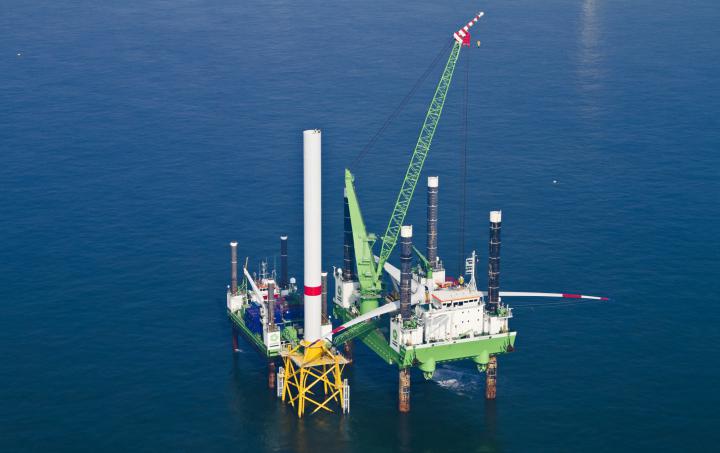

600mt Pedestal Mounted Crane, Neptune, GeoSea
600mt Pedestal Mounted Crane, Neptune, GeoSea
500mt Pedestal Mounted Crane, Le Trait (France), Flexi France
500mt Pedestal Mounted Crane, Le Trait (France), Flexi France

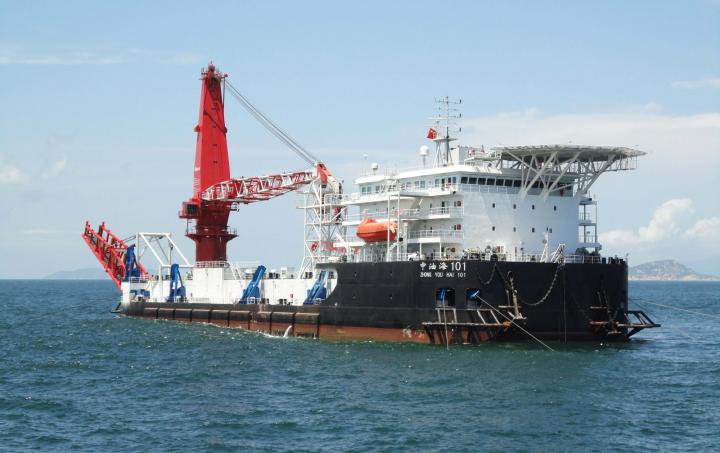

400mt Pedestal Mounted Crane, Zhong You Hai 101, CPOE
400mt Pedestal Mounted Crane, Zhong You Hai 101, CPOE

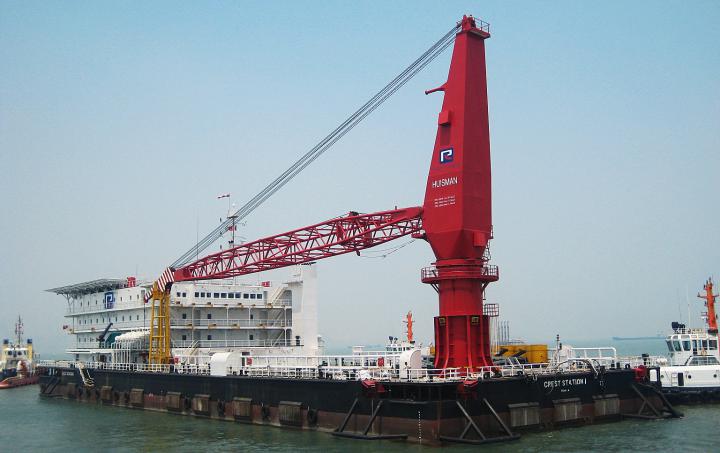

300mt Pedestal Mounted Crane, Crest Station 1, Pacific Radiance
300mt Pedestal Mounted Crane, Crest Station 1, Pacific Radiance

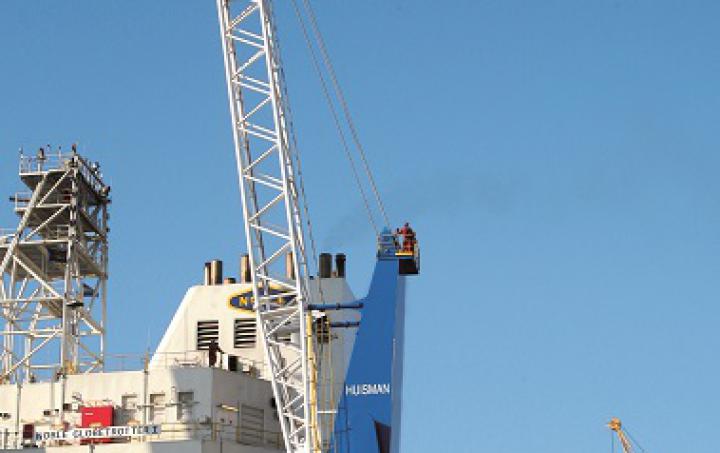

80mt Pedestal Mounted Crane, Noble Globetrotter I, Noble Globetrotter II, Noble Drilling / Shell
80mt Pedestal Mounted Crane, Noble Globetrotter I, Noble Globetrotter II, Noble Drilling / Shell
160mt Pedestal Mounted Crane, Q5000, Helix
160mt Pedestal Mounted Crane, Q5000, Helix

/ features

  • Lifting capacities up to 1,200mt;
  • Protection of equipment inside the fully enclosed crane house;
  • Small tail swing;
  • Special attention for fatigue in heavy duty applications;
  • Ultra-deep water installation system;
  • Active & passive heave compensation system;
  • Full electro-hydraulically driven or full electrically driven;
  • Two independent power supplies or an emergency supply (optional).

/ brochure

Cranes brochure
All downloads

/ references

/ 625mt Pedestal Mounted Crane
/ 60mt Pedestal Mounted Crane and 80mt Pedestal Mounted Crane
/ 75mt Pedestal Mounted Crane
