Civil Works
Storebaelt Project, Denmark

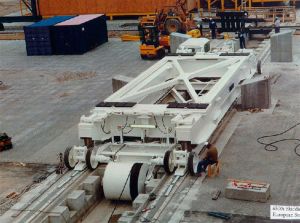

Huisman engineered and manufactured all skidding, pushing and jacking systems required to handle concrete bridge elements weighing up to 6,500mt on the Nyborg Construction site in Denmark. All drive movements of the skid and push units are fully automatic, the skid units are equipped with an automatic control system to guarantee safety and accuracy.
For the construction of the 18 km long bridge across Storebælt (the Great Belt Bridge), the 'Svanen' has been built. Huisman delivered the 7,000mt lifting frame and hoisting system. Nowadays, the 'Svanen' is mainly used for offshore wind turbine installation.
Northumberland Strait Crossing Project, Canada
Huisman designed and built two 8,200mt transporters for this project. The skid units are designed to lift, transport and position large loads with great accuracy. A vertical jack was installed in the centre of the skid unit to lift and rotate the load. The drive and control system was optimized to maintain a skidding speed of maximum 200 m/h.
Downloads
No downloads available
4x 6,500mt Skidding and Jacking Equipment
